Quick answer: Which way does an air filter go? The arrow printed on the cardboard frame must point in the direction the air flows, which is toward the furnace or air handler and away from the return duct. The arrow follows the air, never against it.
It is the most common filter mistake, and it is an easy one to make. The filter slides in either way, so there is nothing stopping you from putting it in backward. But a backward filter clogs faster and lets more dust through. The good news: it takes ten seconds to get right.
This guide shows you how to find the arrow, which way it should point, and how to tell if your old filter was in backward.
Which way does the air filter go?
The rule is simple. Find the arrow on the side of the filter frame. Point it in the same direction the air is moving through your system. Air gets pulled from your house, into the return, through the filter, and into the furnace or air handler. So the arrow points toward the equipment.
Think of it like a one-way street sign for air. The arrow shows traffic direction. Set the filter so the arrow agrees with the flow:
- Filter in a return vent on a wall or ceiling: arrow points into the wall or ceiling, toward the duct.
- Filter in a slot next to the furnace: arrow points toward the furnace, the same way air enters the blower.
- Filter in the blower compartment: arrow points up toward the blower fan, in the direction air is being pulled.
When in doubt, the arrow points away from the room and toward the metal. Air leaves your living space and heads into the system, so that is the direction the arrow follows.
Why filters have an arrow at all
A pleated filter is not the same on both sides. One side has an open mesh or a stiffer backing that supports the pleats against the rush of air. The fibers are arranged to catch big particles first and fine particles deeper in. The arrow makes sure air hits the filter the way it was designed to be hit.
Install it backward and the pleats can collapse under pressure, the support faces the wrong way, and the layered trapping is reversed. The filter still catches some particles, but it works against its own design.
What happens if you install it backward?
A backward filter will not break your furnace overnight, but it costs you in three ways:
| Problem | Correct direction | Backward |
|---|---|---|
| Airflow | Smooth, designed resistance | Higher resistance, blower strains |
| Particle capture | Full rated MERV performance | Reduced capture, more dust through |
| Filter life | Lasts the full 30 to 90 days | Clogs and sags faster |
| System wear | Normal | Extra strain on the blower motor |
None of this is dramatic, but it adds up. A filter you paid for and installed backward does a worse job and dies sooner. Flipping it the right way is free performance.
How to tell if your old filter was backward
Pull the old filter out before you toss it. Look at the two faces. The dirty side is where air enters, so the dirty face should have been pointing at the room, with the arrow pointing away from it toward the furnace. If the dirty side was facing the furnace, it was in backward. Use that as a reference for the new one.

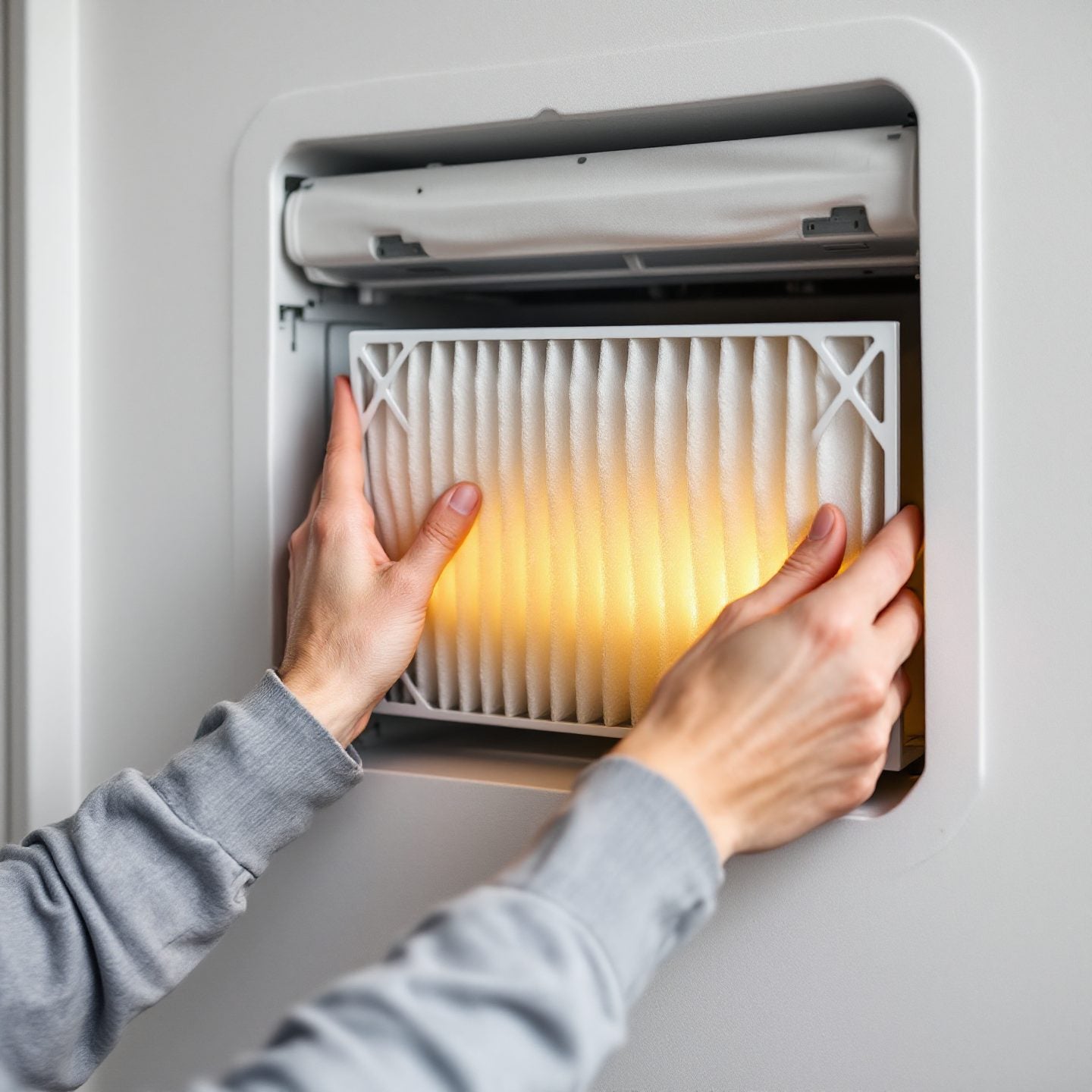

Step by step: installing your filter the right way
- Turn off the system. Set the thermostat to off so the blower is not running while you swap.
- Slide out the old filter. Note which way the old arrow pointed and whether the dirty side faced the room.
- Find the arrow on the new filter. It is printed on the cardboard edge, usually on all four sides.
- Point the arrow toward the furnace. That is the direction air flows out of the room and into the equipment.
- Seat it snug. No gaps around the edges. A loose filter lets air slip past unfiltered.
- Turn the system back on. Done in under a minute.
If your filter slot has no clear airflow cue, the rule holds: arrow points away from the living space, toward the metal cabinet. For the full routine, see how to measure your air filter, which also covers the slot itself.
Make sure you have the right filter first
Direction only matters once you have the correct size in your hand. The size printed on the frame is the nominal size, which runs about half an inch larger than the actual measured filter. Confused by the numbers? Read nominal vs actual filter size, then use our filter size finder to lock in the exact fit. A correctly sized filter installed in the right direction is the whole game.
What filter should you reach for?
Once you know direction and size, pick a rating that matches your home:
- Basic dust and pollen: MERV 8. See Everyday Defense.
- Pets and allergies: MERV 11. See Allergy & Pet.
- Smoke and fine particles: MERV 13. See Maximum Protection.
- Browse everything: the full Ironside filter lineup.
Every Ironside filter is made in the USA, tested to ASHRAE 52.2, and clearly marked with an airflow arrow so you never have to guess. Subscribe and a fresh filter arrives on schedule with free shipping on every order, locked-in pricing, and auto-replenishment, so you change it before it ever clogs. Built here. Breathe better.
Frequently asked questions
Which way does the arrow on an air filter point?
The arrow points in the direction air flows, which is toward the furnace or air handler and away from the room and return duct. Air leaves your living space and enters the equipment, so the arrow follows that path.
Is it bad to put an air filter in backward?
It will not destroy your furnace right away, but a backward filter catches fewer particles, clogs faster, and makes the blower work harder. You lose performance and filter life, so it is worth flipping the right way.
How do I know which way the air is flowing?
Air flows from your rooms into the return, through the filter, and into the furnace. Point the arrow away from the living space and toward the metal cabinet or blower. Checking the dirty face of your old filter also confirms the direction.
Do all air filters have a direction arrow?
Nearly all pleated filters print an airflow arrow on the cardboard frame, usually on all four edges. Cheap flat fiberglass filters sometimes do not, but pleated filters like Ironside always mark the correct direction.
What if my filter has no arrow?
If you cannot find an arrow, point the more open or rougher mesh side toward the furnace and the smoother pleated face toward the room. When possible, use a marked pleated filter so you never have to guess.
